Forged Thoughts

Forged Thoughts is a modeling and rendering programming language. It is open source under the MIT license and currently in early development. The language utilizes 3D and 2D SDFs and is written in Rust and can be easily installed as a Rust subcommand.

Forged Thoughts strives to create high-quality distance field models for rendering and poligonization. It utilizes multi-threaded CPU based rendering in 64-bit to prevent the limitations of SDFs on the GPU. The focus is on quality, rather than speed.

Features

  • Easy to use programming language with special modeling functionality.
  • Inbuild renderer for Phong, PBR and a full featured BSDF pathtracer.
  • Polygonization of models (OBJ).
  • 64-bit heavily multi-threaded ray-marcher running on the CPU.
  • Access to all SDF modeling primitives, modifiers and tricks (In progress).

Goals

The overall project goals are:

  • Create signed distance fields for rendering and poligonization.
  • Focus is on quality rather than speed (although all example render in just a few hundred ms on my machine).
  • CPU based rather than GPU based. All computation is done in 64-bit.
  • Provide an easy but powerful syntax to model and render SDFs without any limitations.
  • Animation( TODO)
  • Object hierarchies by including sub-class scripts (TODO)
  • Share objects and materials via an integrated database (TODO)
  • Model and work with 2D SDFs and Text as an overlay to the 3D layer (TODO)
  • Terrain (TODO)
  • Physics (TODO)

Examples

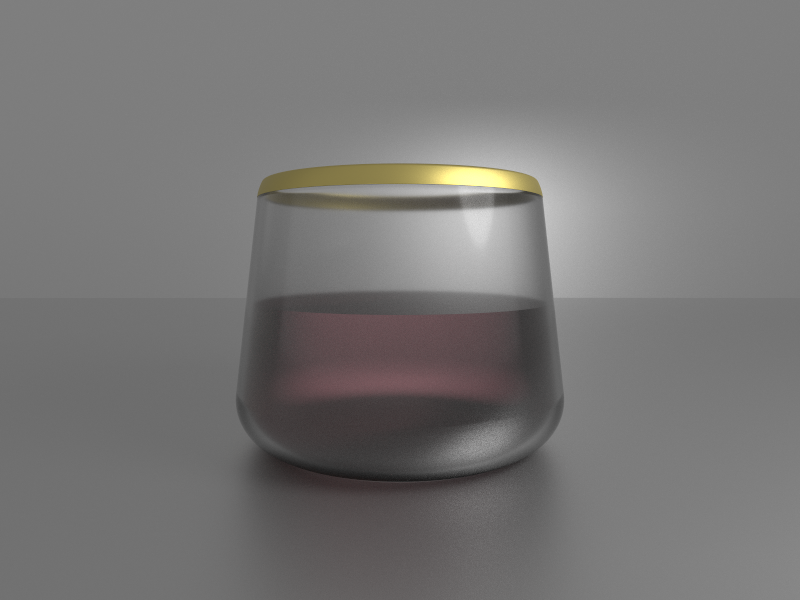

Wine Glass

Wine Glass Wine Glass

The modeling of the glass, except the materials, is just 10 lines.

// Glass

let glass = Cone(0.6, 0.7, 0.6);
glass.rounding = 0.2;

glass.material.rgb = F3(1.0, 1.0, 1.0);
glass.material.roughness = 0.0;
glass.material.transmission = 1.0;
glass.material.ior = 1.50;

let interior = glass.copy();
interior.scale = 0.96;

// Fluid

let fluid = interior.copy();
fluid.scale -= 0.0002;
fluid.material.rgb = F3("722F37").to_linear();
fluid.material.transmission = 1.0;
fluid.material.roughness = 0.5;
fluid.material.ior = 1.3443705; // Red Wine
fluid.material.clearcoat_gloss = 1.0;
fluid.material.sheen = 1.0;
fluid.material.sheen_tint = 1.0;
fluid.max.y = 0.0;

glass -= interior;

// Top: Smooth Cut Off & Gold Rim

let box = Box();
box.material.rgb = F3("d4af37");
box.material.metallic = 1.0;
box.material.roughness = 0.2;
box.position.y = 1.5;

// Smoothly subtract the box from the glass
glass -= Smooth(box, 0.01);

// Create a groove with the gold material of the box
glass += Groove(box, 0.001, 0.07);

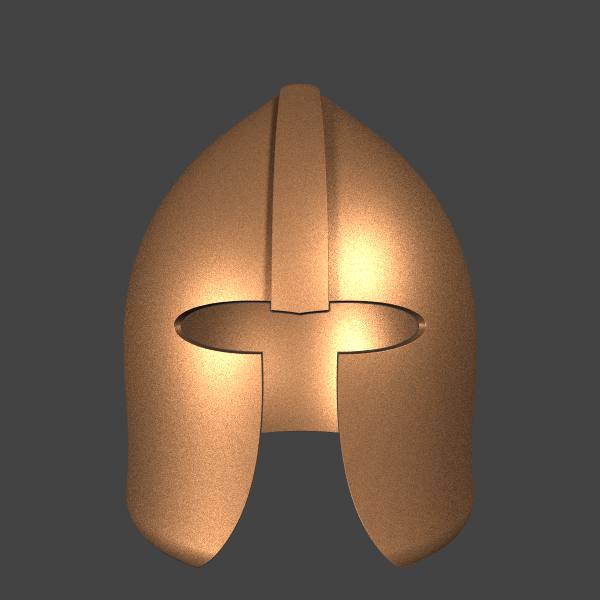

Helmet

pic pic

The above helmet was created with the following code:

// Main shape - We make a smooth blend between a sphere and a cone

let sphere = Sphere(0.24);
let cone = Cone(0.3, 0.25, 0.0);

let helmet = smin(sphere, cone, 0.5);

// Assign the material

helmet.material.rgb = F3("9F6F4A");
helmet.material.metallic = 0.7;
helmet.material.roughness = 0.3;

// Make it hollow by creating a copy, subtract and move it down a bit
// to open the bottom

let cut_out = helmet.copy();
cut_out.position.y -= 0.04;
cut_out.scale = 0.98;
helmet -= cut_out;

// Eye holes - We mirror an Ellipsoid on the x-axis and subtract it.

let eyes = Ellipsoid();
eyes.size = F3(0.11, 0.03, 0.1);
eyes.position = F3(0.06, -0.03, 0.3);
eyes.mirror.x = true;
helmet -= eyes;

// Nose and mouth - We modify a box and subtract it.

let cut = Box(F3(0.07, 0.2, 0.1));
cut.position.y -= 0.25;
cut.position.z = 0.2;

let modifier = RayModifier("x", "*", "sin", "y");
modifier.frequency = 10.0;
modifier.amplitude = 0.7;
modifier.addend = 1.0;
cut.modifier = modifier;
helmet -= cut;

// Stripe - We add a positive groove in the intersection between
// the helmet and a box.

let stripe = Box(F3(0.011, 0.17, 0.2));
stripe.position.y = 0.16;
stripe.position.z = 0.2;
helmet += Groove(stripe, 0.01, 0.02);

Current 3D SDF Primitives

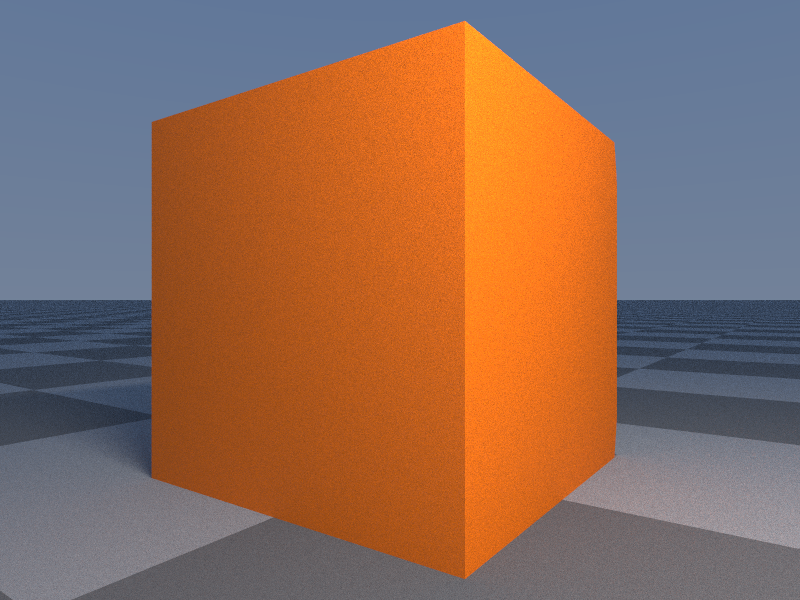

SphereBox

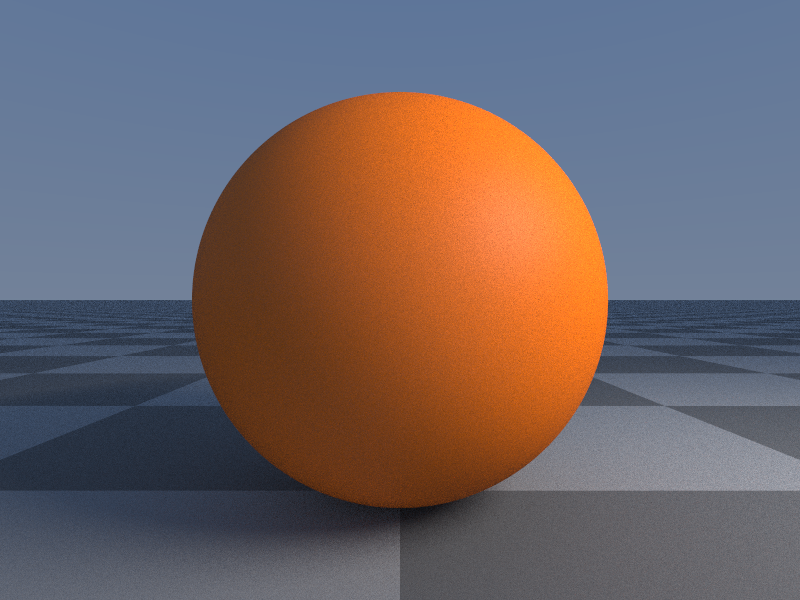

Sphere SphereBox Box

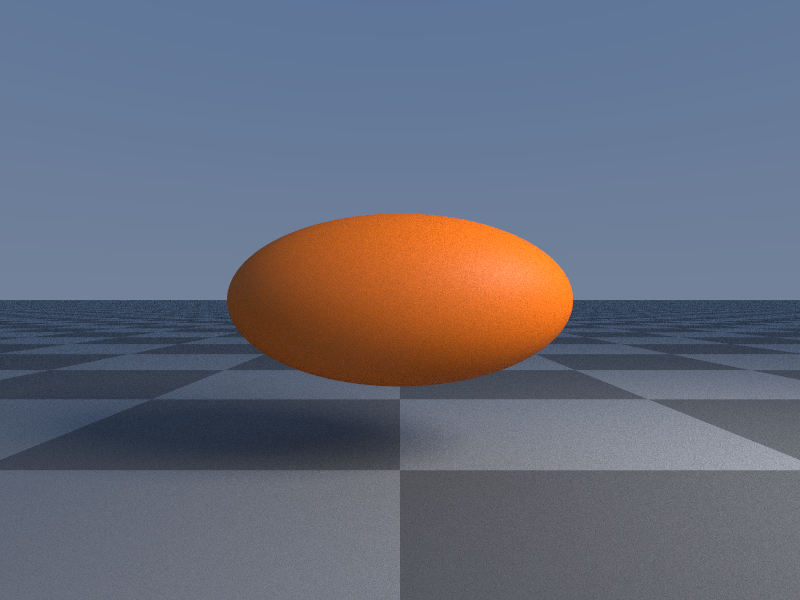

Cone / CappedConeEllipsoid
Cone ConeBox Box

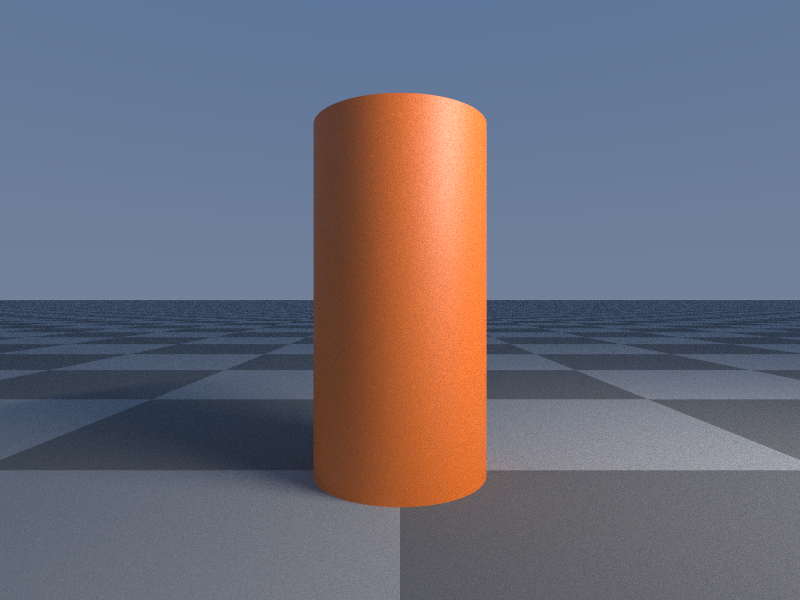

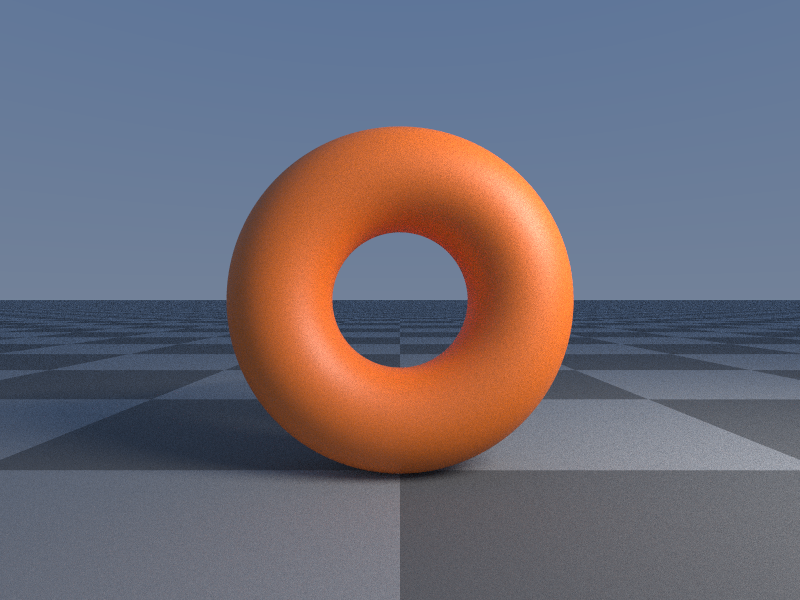

TorusCylinder
Torus TorusCylinder Cylinder

Current Booleans

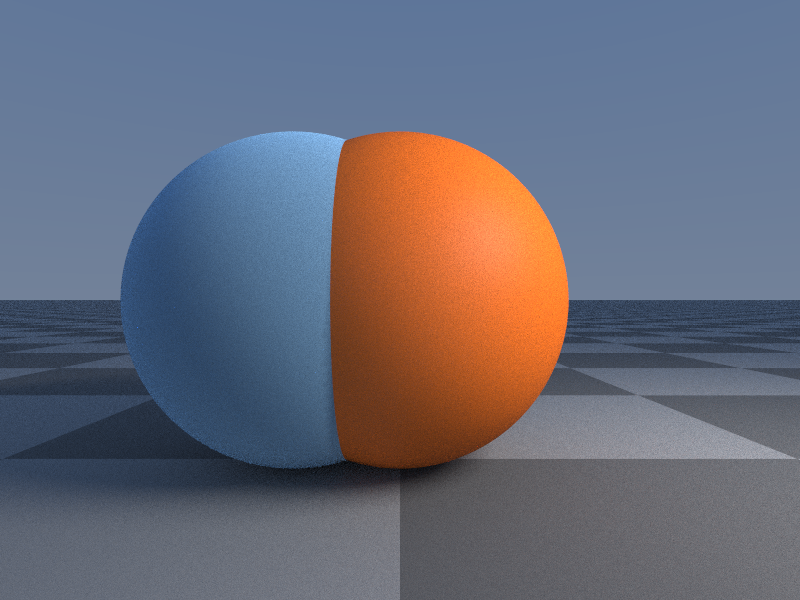

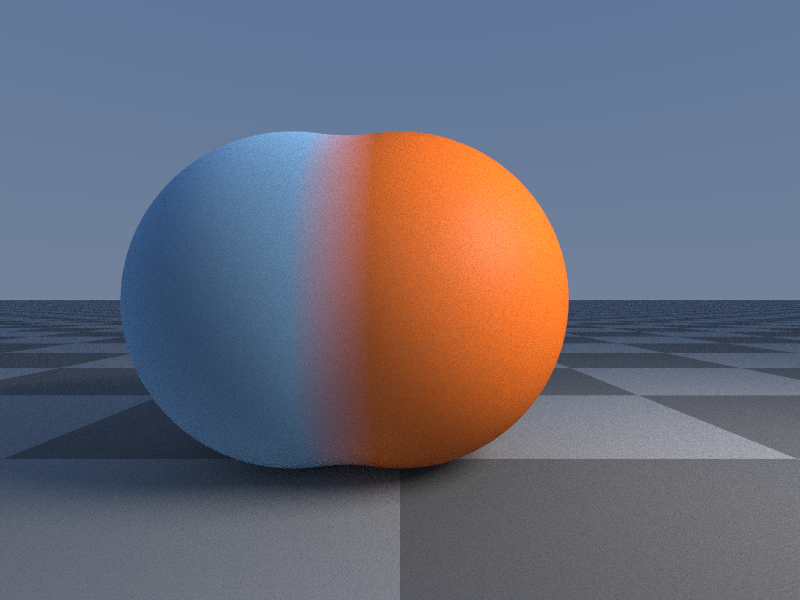

AdditionAddition Smooth
Addition AdditionAddition Smooth Addition Smooth

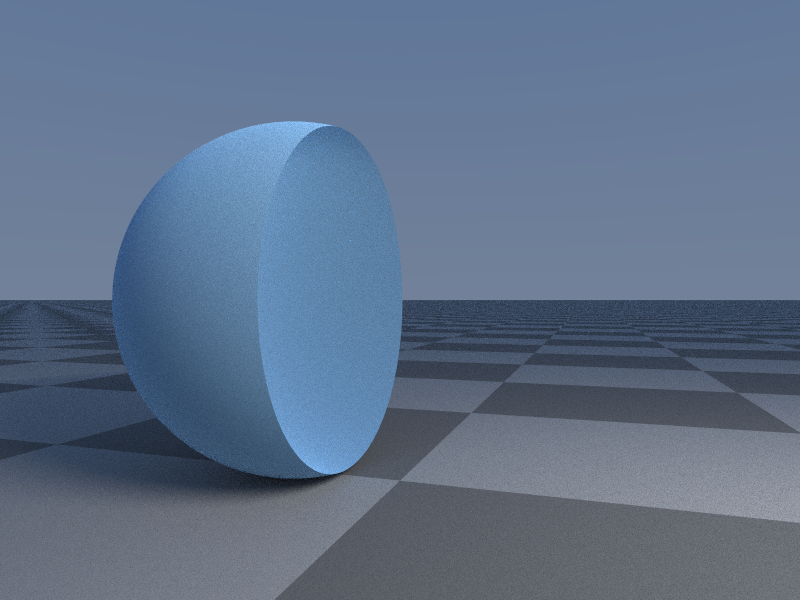

Addition GrooveSubtraction
Subtraction SubtractionSubtraction Subtraction

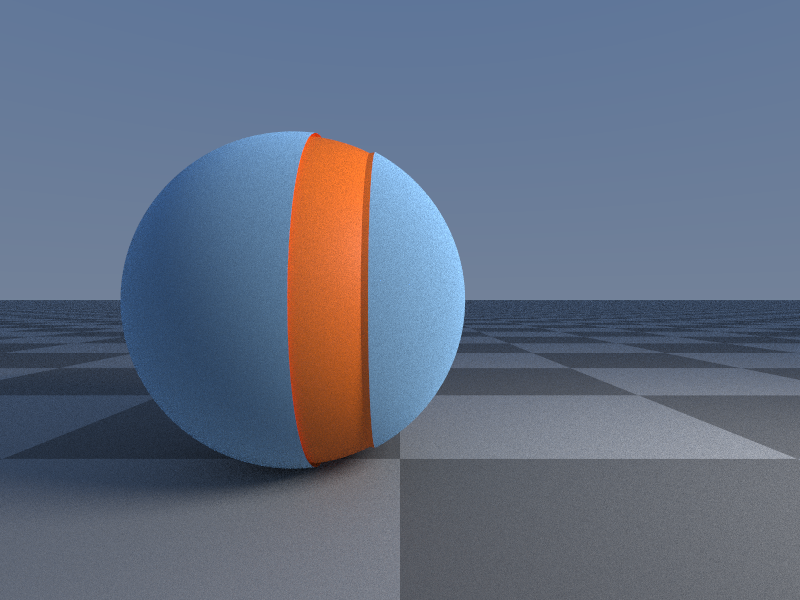

Subtraction SmoothSubtraction Groove
Subtraction Smooth Subtraction SmoothSubtraction Groove Subtraction Groove
IntersectionIntersection Smooth
Intersection IntersectionIntersection Smooth Intersection Smooth

Current Merging Functions

smin
SMin SMin

Current Modifier

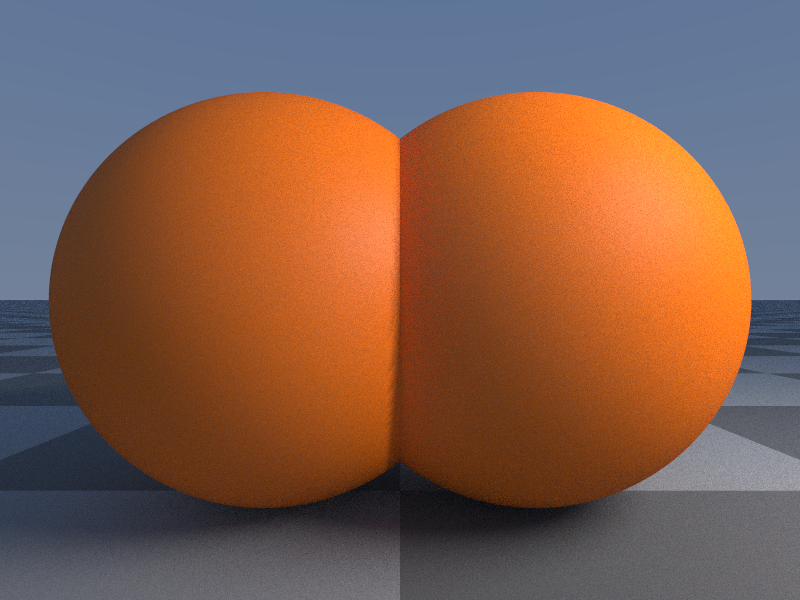

TwistMirroring
Twist TwistMirroring Mirroring

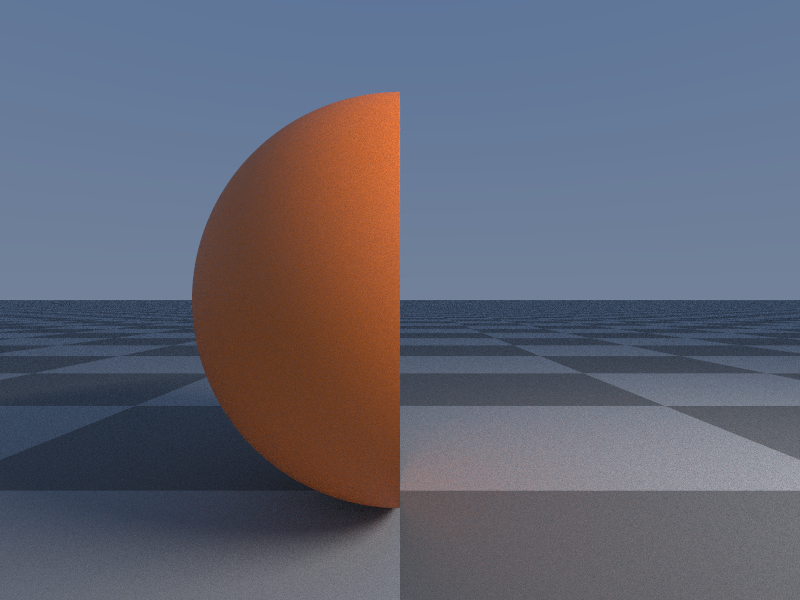

MaxOnion
Max MaxMirroring Mirroring

License

Forged Thoughts is licensed under the MIT.

Unless explicitly stated otherwise, any contribution intentionally submitted for inclusion in Forged Thoughts, shall be MIT licensed as above, without any additional terms or conditions.

Sponsors

None yet
